KB3100S
KOMPA
Silicone material
0.5mm-5mm
1.1±0.5 g/cm³
China
ISO9001, ISO14001, ISO45001, IATF16949, EN45545-2, UL94-V0, NSF61, UL157-2007 Gaskets and Seals. CE, ROHS, PAHS, REACH
Product Description

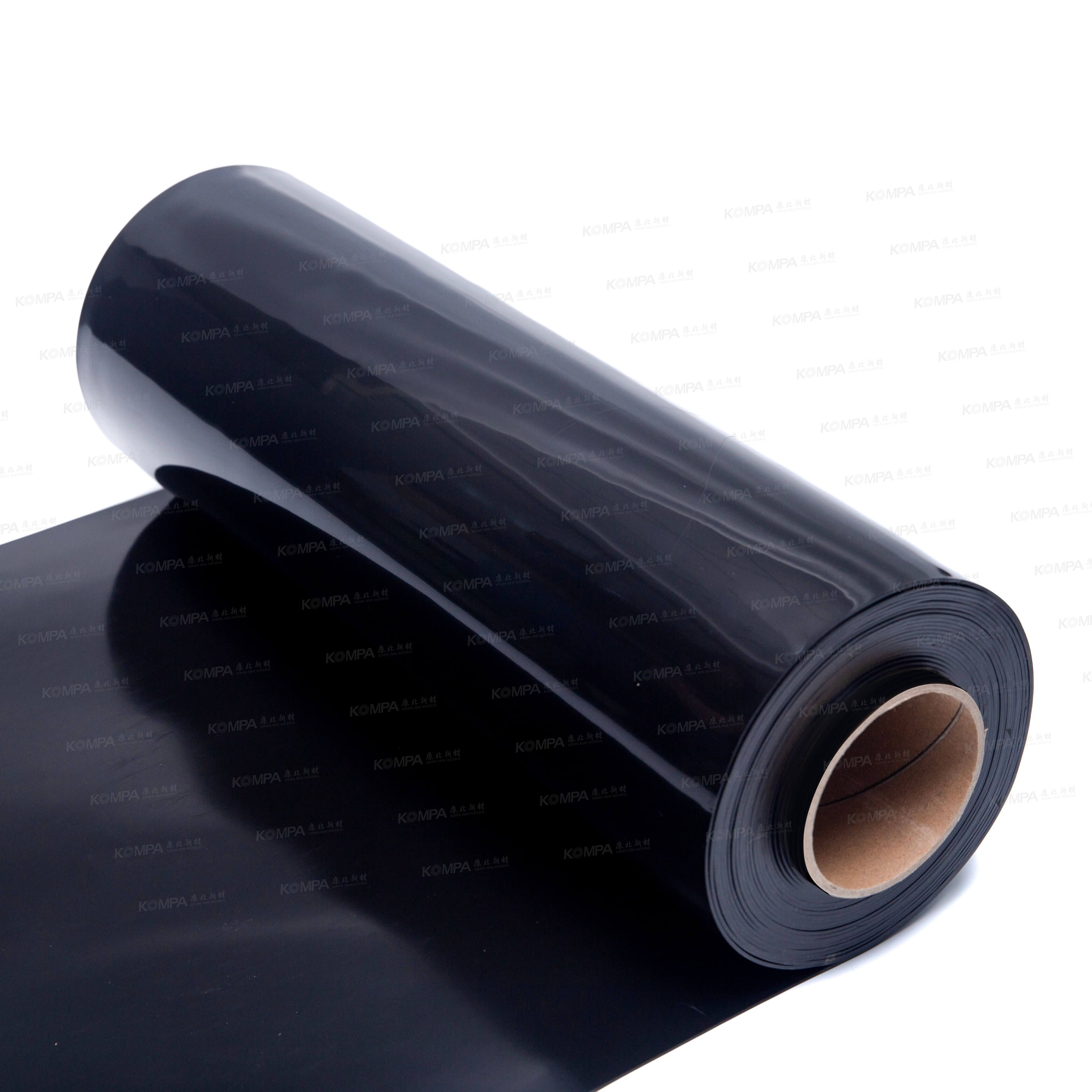

Solid Silicone Sheet KB3100S Description
Solid Silicone KB3100S are continuously manufactured through calendering processes. Their exceptional heat and chemical resistance enables broad applicability. These sheets deliver long-term service at 180°C, withstand 200°C+ environments for weeks while retaining elasticity, and endure instantaneous exposure exceeding 300°C.To enhance toughness and tensile strength, composite versions incorporate fabric reinforcement cores including: Polyester fabric，Nylon mesh，Fiberglass cloth PTFE fabric.
Electrical Performance
Exhibits minimal degradation of electrical properties when exposed to moisture or elevated temperatures. Even during short-circuit events, carbonization products (including carbon dioxide) maintain insulating properties, ensuring continuous operation of electrical equipment. This qualifies material can produce wire, cable, and lead wire.
Exceptional Physiological Stability
Withstands repeated sterilization cycles under harsh conditions. Demonstrates high resilience with low permanent compression set (≤50% after 48h at 200°C per ASTM D395). Dielectric strength ranges from 20-25 kV/mm.
Superior Solvent Resistance
When Maintains stable performance with:
Aliphatic, aromatic, and chlorinated hydrocarbon solvents
Petroleum-based fuels and hydraulic fluids
Synthetic oils (including ester-based lubricants and silicate ester hydraulic fluids) at ambient temperatures.
Solid Silicone Rubber Plate KB3000S TDS.pdf
| Product Model | KB3100S Standard | Test Standard |
| Flame retardant | / | UL-941 |
| Hardness Shore A | 20-75 | ASTMD2240 |
| Tensile Strength MPA | ≥2.0 | ≥2.0 |
| Elongation at Break% | ≥200 | ASTMD412 |
| Density(g/cm3) | 1.1±0.5 | ASTMD1056 |
| Temperature°C | -55-200 | ASTMD412 |
| Environmental testing | PASS | ROHS2.0/REACH |
| Thicknessmm | 0.5-5.0 | ASTMD347 |
| Color | Black,Red,Customized color | Visual |
| Sunface treatment | Glossyfinish,Mattefinish,Textured(fabric-like)finish | Visual |
| Basematerial | Polyesterfabric,ylonfabric,Glassfiberfabric,TFEfaric | Visual |
Solid Silicone KB3100S is engineered for high-performance sealing, insulation, and protection in demanding industrial environments. It delivers excellent resistance to heat, aging, compression set, and chemicals—making it ideal for a wide range of applications.

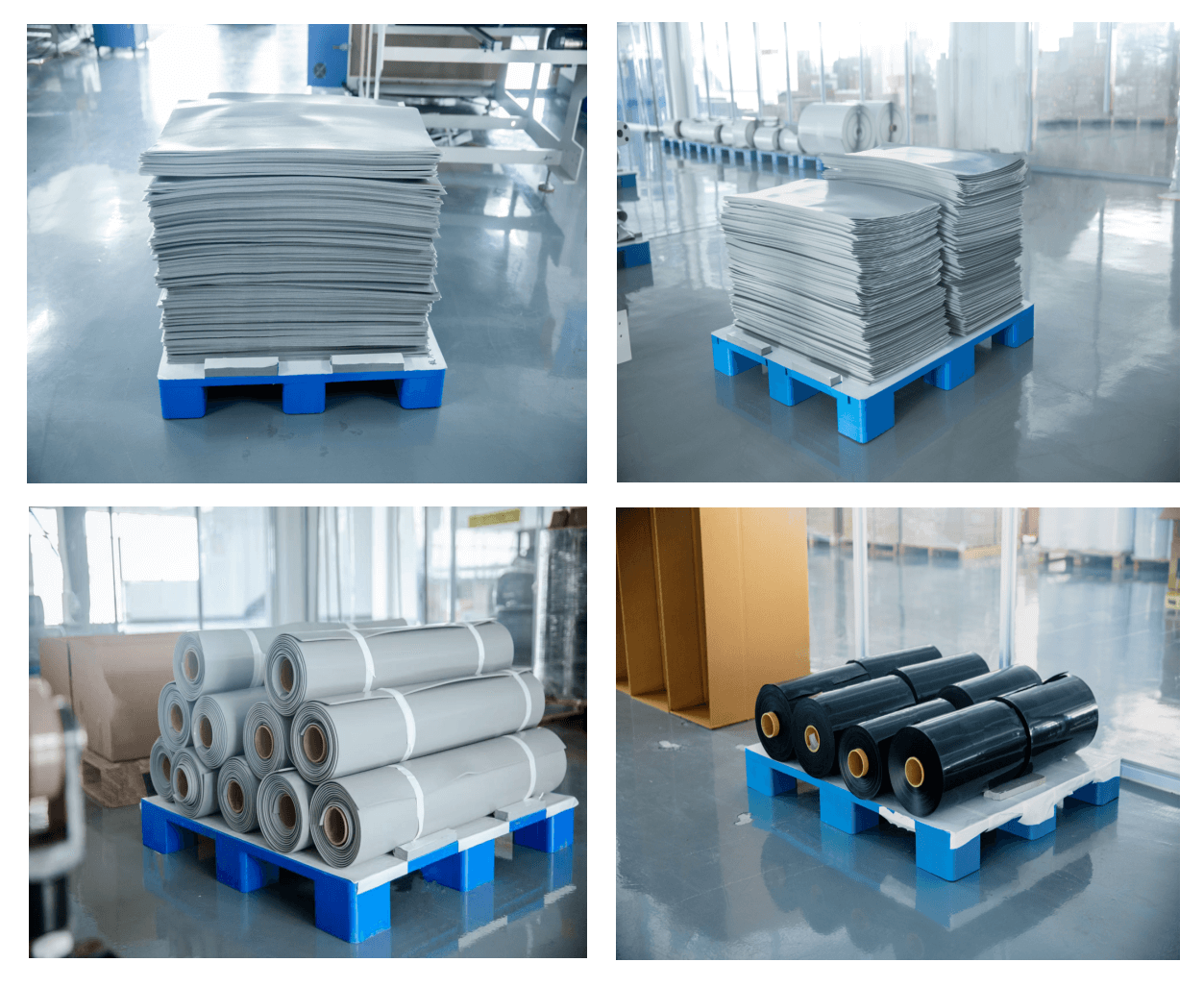

To ensure the quality and safety of your order, KB3100S solid silicone sheets are packaged with care and precision, ready for both domestic and international shipment.
Individually stacked with protective interleaving (PE film or kraft paper)
Bundled in moisture-proof wrapping
Packed in export-grade cartons or wooden cases (on request)
Rolled with core support to prevent deformation
Wrapped in stretch film and bubble wrap for shock protection
Secured in reinforced cartons or on pallets for bulk orders
Separated by layers or trays to avoid damage
Bagged and boxed with clear labeling by part number or project

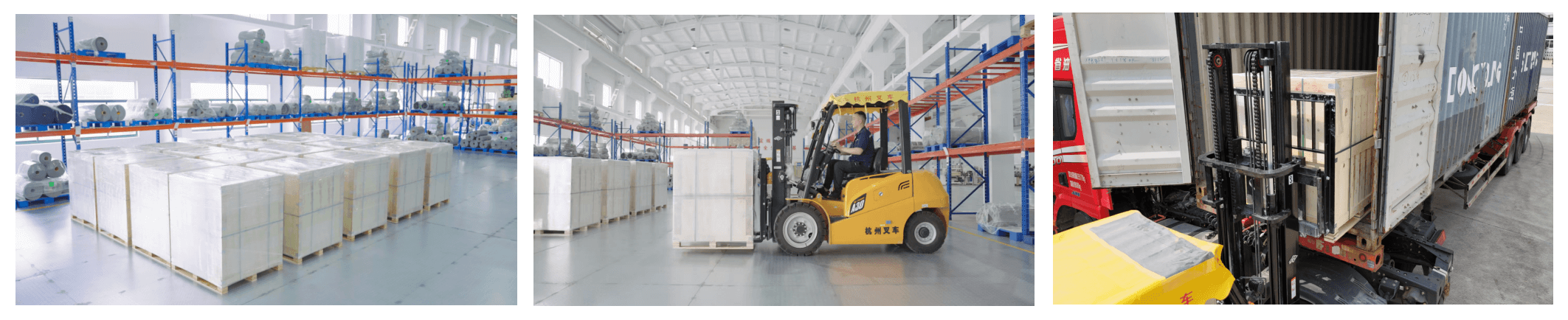

Palletizing for bulk shipments
Heat-shrink wrapping for sea freight
Labeling with product code, lot number, and QC status
With reliable packaging and global shipping experience, we ensures your silicone sheets arrive safely and ready for production.

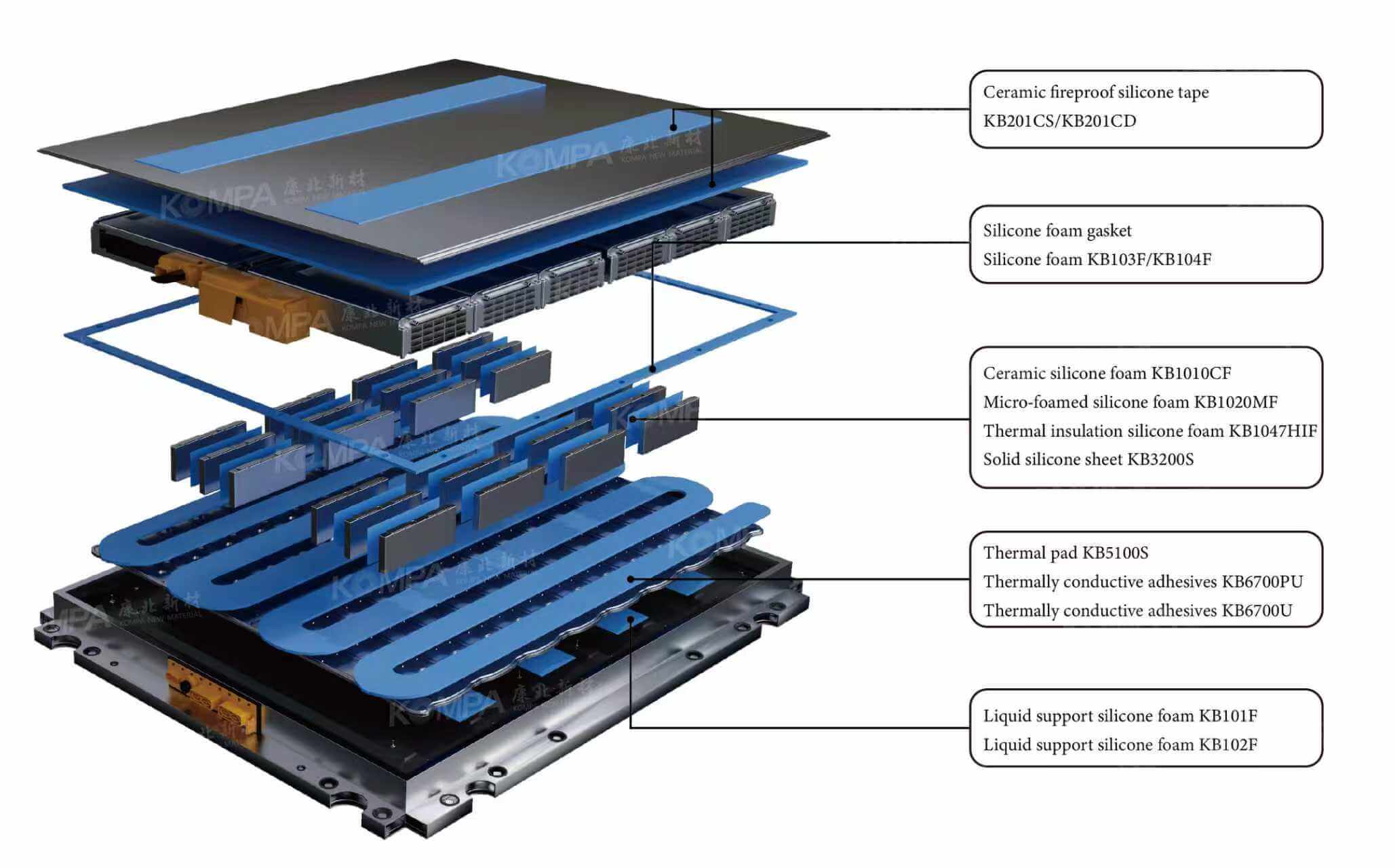

Battery pack gasket and sealing insulation
Heat-resistant pads between modules
Fire-retardant barrier layers
Compression pads to absorb thermal expansion
Engine compartment thermal shields
Vibration and sound dampening pads
Gasket materials for under-hood components
Dust and water sealing in lighting or connectors
High-voltage insulation sheets
Non-conductive barriers and spacers
PCB cushioning and heat resistance layers
Gaskets for pumps, valves, and flanges
Chemical-resistant covers and pads
Oven and high-temp sealing environments
FDA-grade variants available (upon request)
Heat-resistant seals in sterilization equipment
Cleanroom machinery insulation
Lightweight thermal protection barriers
Silicone rubber seals for high-altitude environments
Insulating pads for electronic enclosures
When you choose KB3100S Solid Silicone, you're not just getting a high-performance material you're getting reliable quality, customization, and service support.
Premium-Grade Solid Silicone Sheets
Consistent thickness, hardness, and surface finish
Clean-cut edges, ready for fabrication or direct use
For testing and evaluation before mass production orders.
Sheets, rolls, or die-cut parts per your design
Thickness from 0.5mm to 5 mm
Adhesive backing (single or double-sided)
Fabric reinforcement (on request)
Flame-retardant,
Clean PE film wrap or kraft paper interleaved
Export-grade carton or pallet packaging for safe delivery
Material data sheet (TDS)

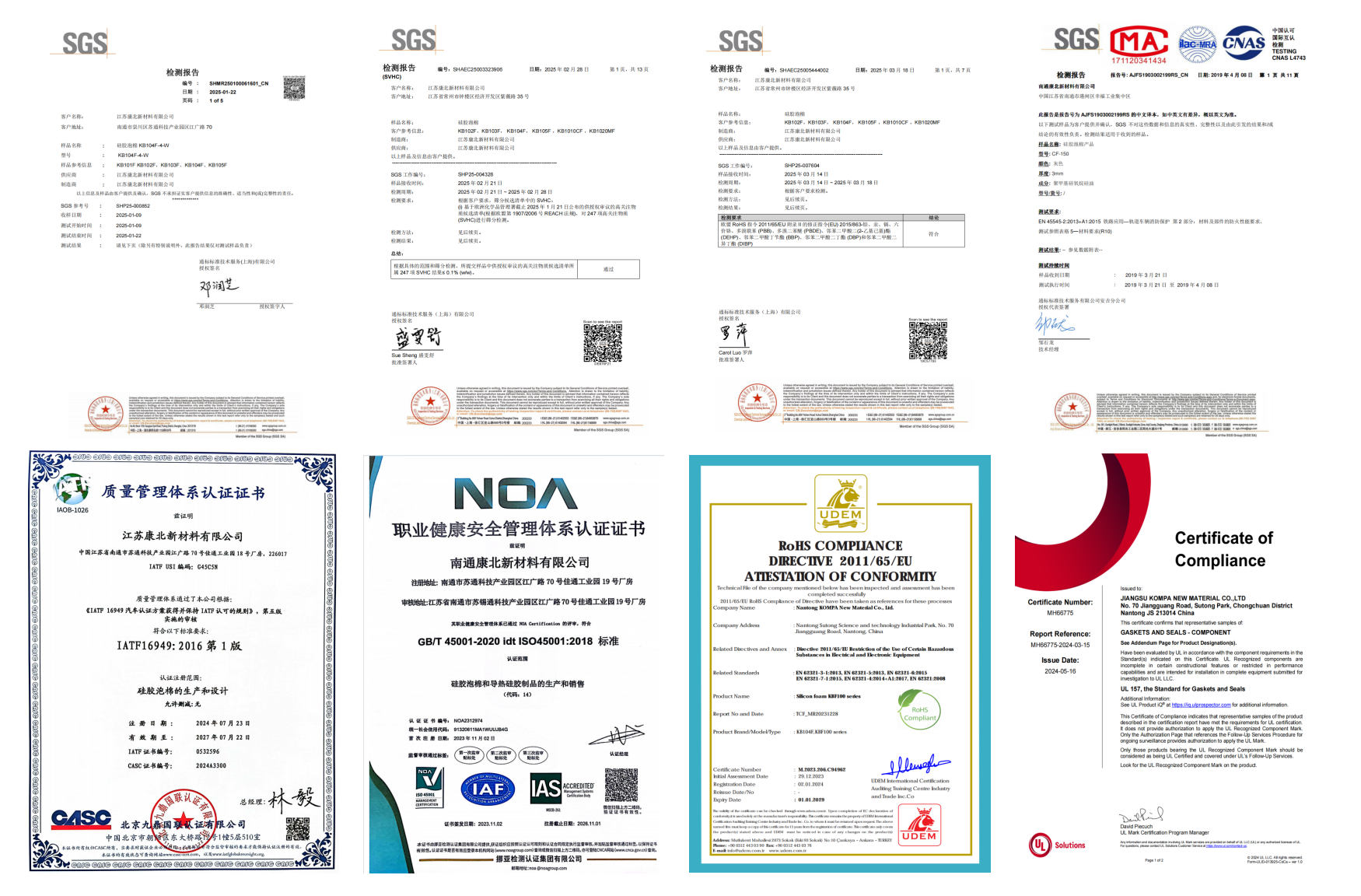

REACH, RoHS, and UL compliance certificates (if applicable)
Application guidance from our engineering team
All pads are 100% inspected, RoHS/REACH compliant, and manufactured under ISO 9001 quality systems.
KOMPA is a trusted innovator in silicone-based insulation materials technologies. We combine materials science expertise with precision manufacturing to deliver solutions that meet the most demanding requirements in EV battery systems, energy storage, automotive electronics, and industrial applications.
Over 8 years of experience in silicone materials

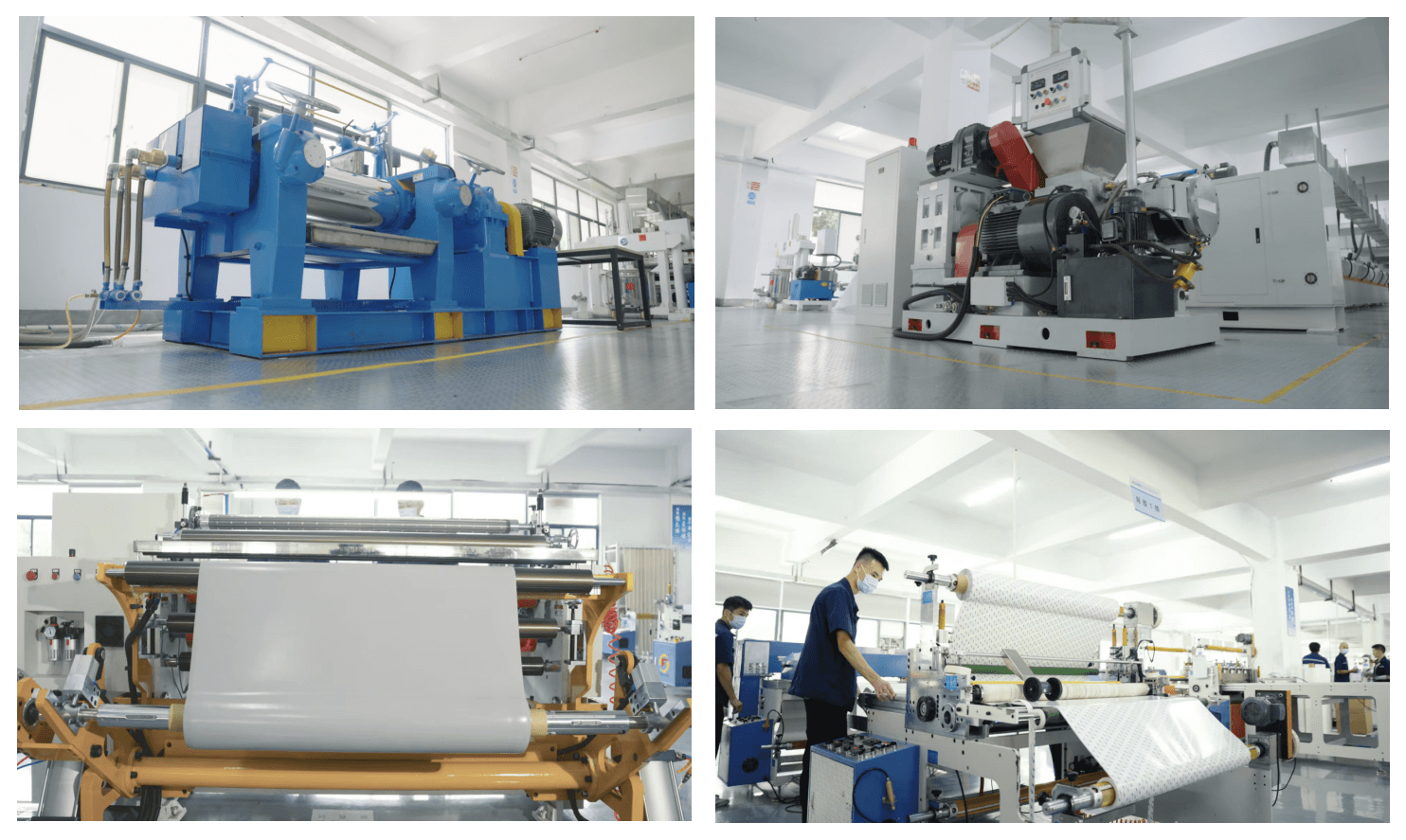

In-house R&D for continuous product innovation
ISO9001-certified production with full traceability

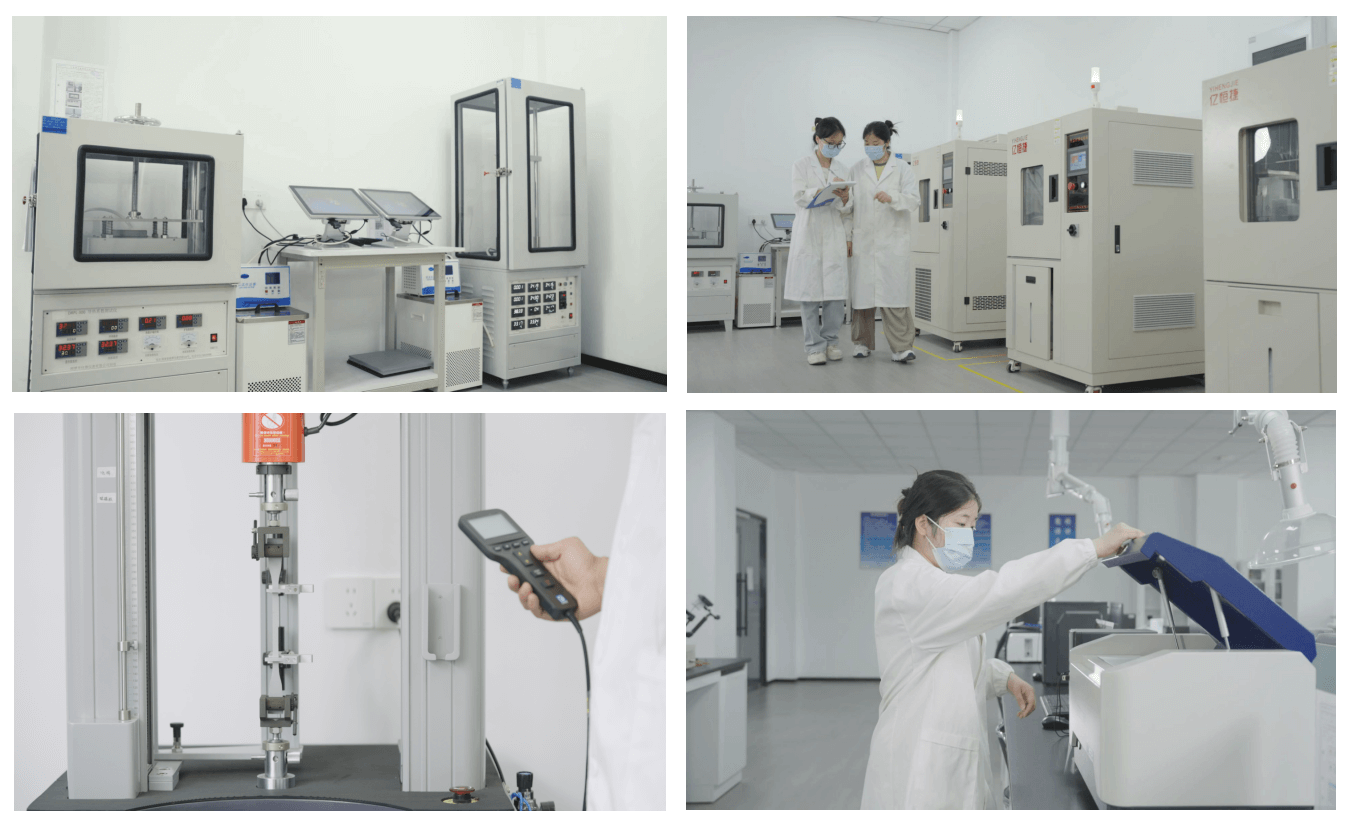

Consistent performance, certified by third-party labs (UL, RoHS, REACH)
Tailored solutions: thickness, hardness, die-cutting
Technical support from prototype to mass production
Trusted by clients in Europe, North America, and Southeast Asia
Our Key Partners Include
Huawei – Global leader in communications, smart devices, and energy solutions
ZENERGY – Trusted supplier specializing in new energy battery systems
SAIC Motor – One of China’s largest and most innovative automotive manufacturers
Dongfeng Motor – Leading state-owned company in commercial and passenger vehicles
CRRC – World’s largest manufacturer of rail transit equipment and systems
CALB – Global innovator in lithium battery technology and energy storage solutions
Their trust speaks for our quality, reliability, and engineering excellence.
Choose KOMPA—where material innovation meets engineering precision.
We understand that every application has unique requirements. That's why our KB3100S solid silicone sheets are available with a wide range of customization options to meet your exact needs.
Thickness range: 0.5 mm to 5mm
Custom sheet sizes or roll lengths
Precision tolerance control for tight-fitting applications
Standard colors: Red, Gray, White
Custom colors available upon request (Pantone matching available)
Single-sided or double-sided PSA (Pressure-Sensitive Adhesive)
High-temp resistant adhesives available
Easy-peel liners for fast assembly
Fabric-reinforced silicone (fiberglass, polyester mesh)
For increased dimensional stability and tear resistance
Flame-retardant (UL 94 V-0 grade)
FDA-compliant for food or medical applications
Electrically conductive or anti-static grades
UV, ozone, and chemical resistance tailored to your environment
Custom gaskets, pads, and components
CNC cutting, kiss-cutting, and laser fabrication
Low-volume prototyping to high-volume production
With flexible production and in-house engineering, Kompa New Materials delivers silicone sheet solutions that fit your product—not the other way around.
Solid Silicone Sheet KB3100S is used for sealing, insulating, and protecting components in high-temperature and harsh environments. It is specifically designed for applications requiring excellent thermal stability, long-term compression resistance, and reliable electrical insulation. Thanks to its durable silicone formulation and consistent mechanical performance, KB3000S is ideal for
EV battery packs and energy storage enclosures
Automotive engine compartments, sensors, and connectors
Power electronics such as converters and control modules
High-voltage electrical equipment and insulation panels
Industrial machinery and oven sealing systems
Its solid structure and customizable form make it suitable for precision gaskets, pads, and protective barriers—helping reduce mechanical stress, resist environmental aging, and ensure stable operation over time.
Yes, Please download here
Choosing the right solid silicone sheet depends on your application's mechanical, thermal, and environmental demands. KB3100S is available in multiple configurations to suit a wide range of industrial and electronic uses.
Use KB3100S for applications ranging from -60°C to +200°C
Ideal for environments with high heat, thermal cycling, or cold starts
Sheets (0.5–5.0mm): Ideal for tight tolerances and insulation layers
Choose based on gap-filling and compressive force requirements
Available in 25–75 Shore A
Softer grades for better surface conformity
Harder grades for dimensional stability and structural support
Smooth or textured surface available
Red, gray, or white standard colors; custom colors optional
Consider visibility, aesthetics, or color-coding in your system
Ask for flame-retardant versions if neede
Electrical insulation? Confirm dielectric breakdown values
Exposure to chemicals? Request enhanced chemical-resistant grades
If you're unsure, our engineers can help recommend the right thickness, hardness, and material grade for your application. Custom die-cutting, adhesive backing, and reinforcement options are also available.
Need help selecting the right configuration?
Contact KOMPA technical team for personalized guidance and samples.
