KB1020MF
KOMPA
Silicone material
0.5mm-5.0mm
0.6-1.2(g/cm³)
500mm, 1000mm
China

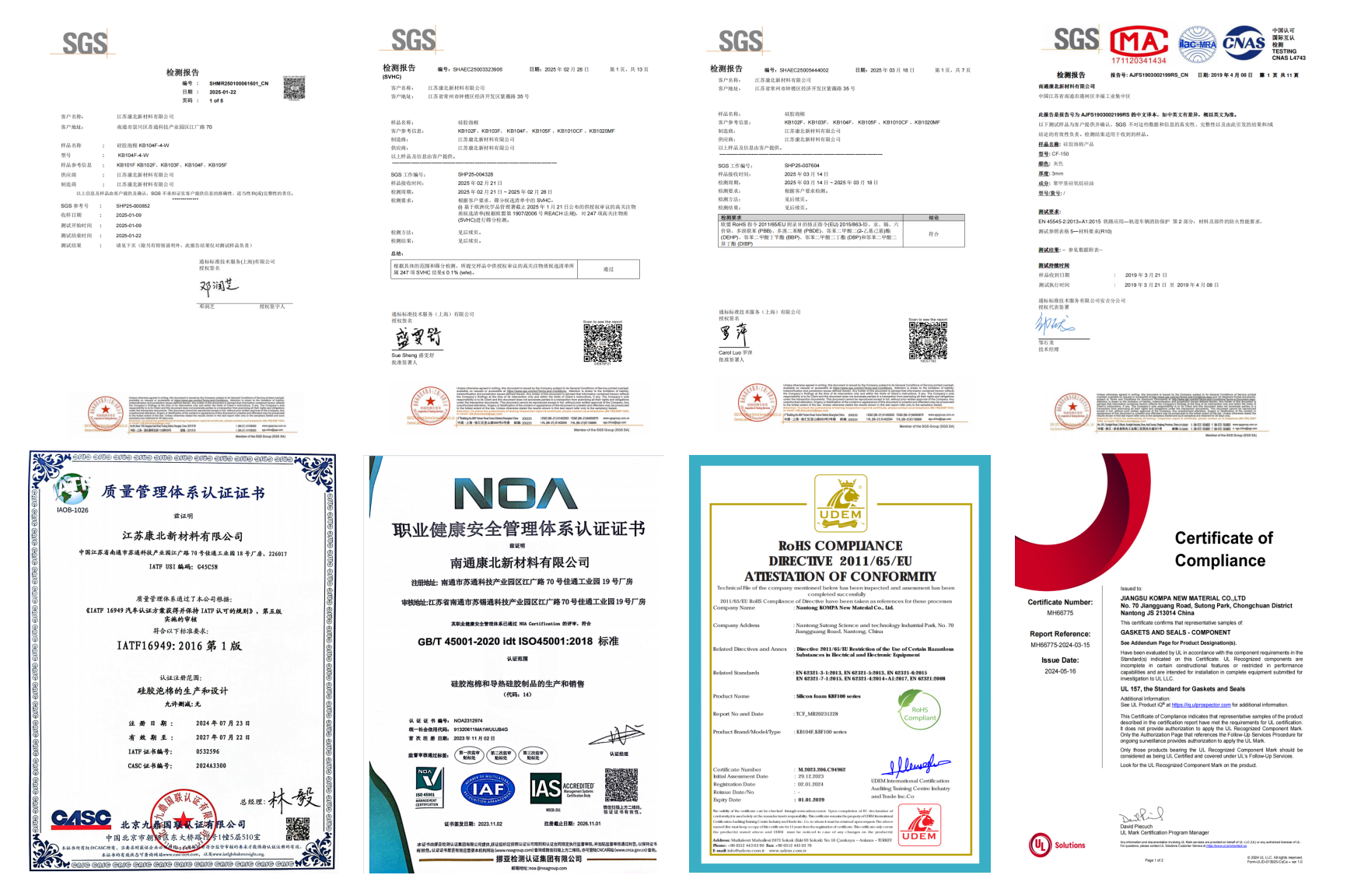

ISO9001, ISO14001, ISO45001, IATF16949, EN45545-2, UL94-V0, NSF61, UL157-2007 Gaskets and Seals. CE, ROHS, PAHS, REACH
Product Description
The KB1020MF silicone micro-foam is a lightweight, high-strength material with adjustable cell expansion ratios, widely used in industries requiring specialized compression stress performance. It is eco-friendly, non-toxic, and odorless, offering excellent fire resistance, flame retardancy, low smoke density, and low smoke toxicity. The material provides superior weather resistance (UV and ozone), temperature stability across extreme conditions (–60°C to 200°C), and outstanding electrical insulation properties.
Low compression set and high creep resistance
Excellent flame retardancy, low smoke density and toxicity, high oxygen index
High electrical insulation
Wide operating temperature range, capable of continuous operation from –60°C to 200°C
Environmentally friendly with low VOC emissions
Micro-foamed Silicone Foam KB1020MF TDS.pdf
| Properties | KB1020MF | Test Method |
|---|---|---|
| Color | Grey/Black | Visual |
| Thickness (mm) | 0.5–5.0 | GB/T 17794-2021 |
| Density (g/cm³) | 0.6–1.2 | ASTM D1056 |
| Tensile Strength (kPa) | ≥400 | ASTM D412 |
| Elongation at Break (%) | ≥120 | ASTM D412 |
| 25% Compression Force Deflection (kPa) | ≥200 | ASTM D1056 |
| Flame Resistance | V-0 | UL94 |
| Volume Resistivity (Ω·cm) | ≥1.0×1013 | ASTM D149 |
| Thermal Conductivity (W/m·K) | ≤0.2 | ASTM C518 |
Shock absorption and cushioning in assembly lines for aerospace, high-speed rail, automotive, and energy storage industries
Sealing applications in new energy vehicle PACKs and electrical cabinets
Thermal insulation, flame retardancy, low VOC, sound insulation, electrical insulation, and protection
Excellent compression set and elasticity
UV, ozone, and aging resistant

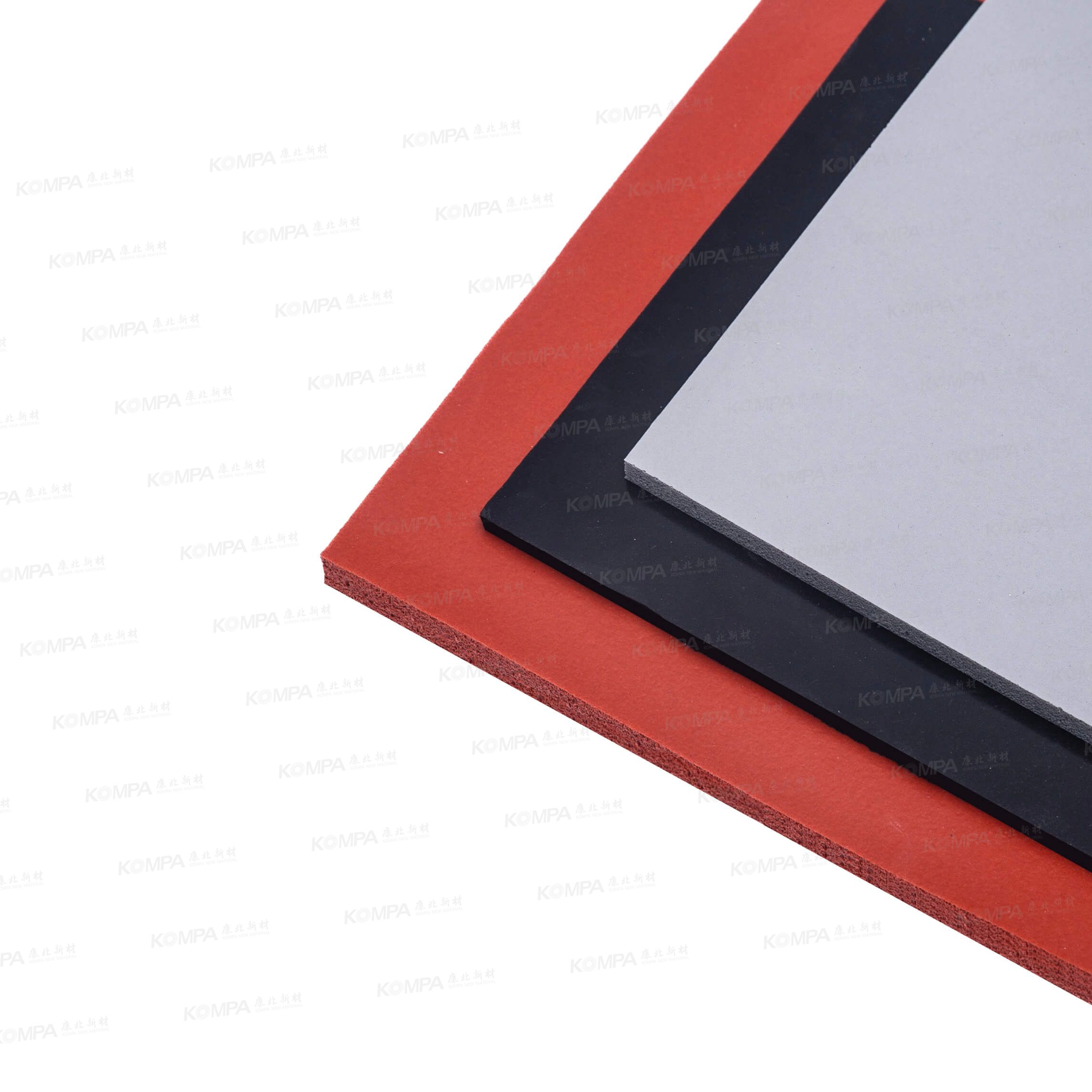

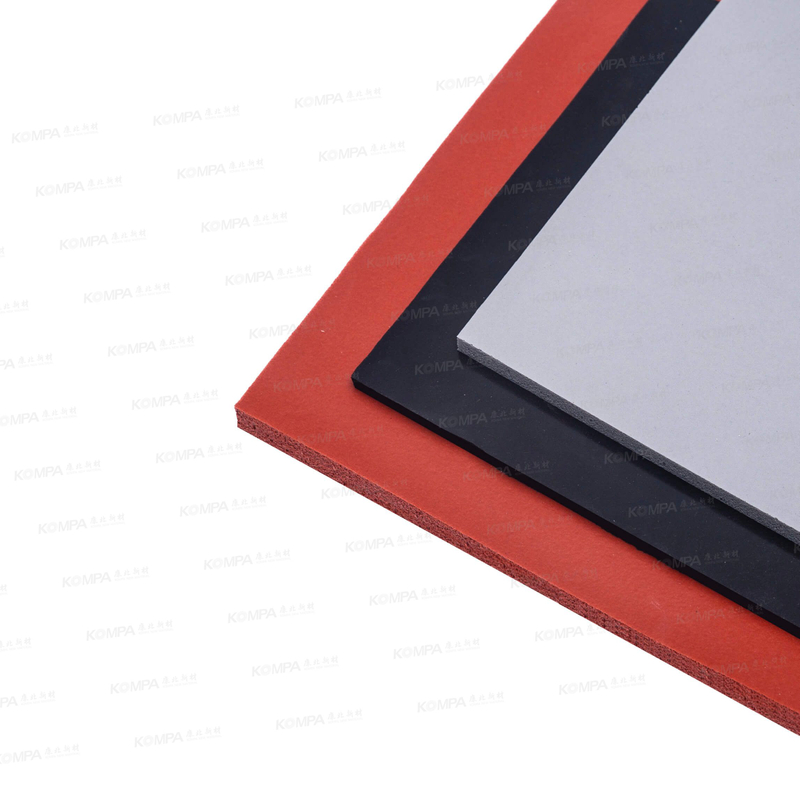

Available in sheets, rolls, and custom die-cut parts

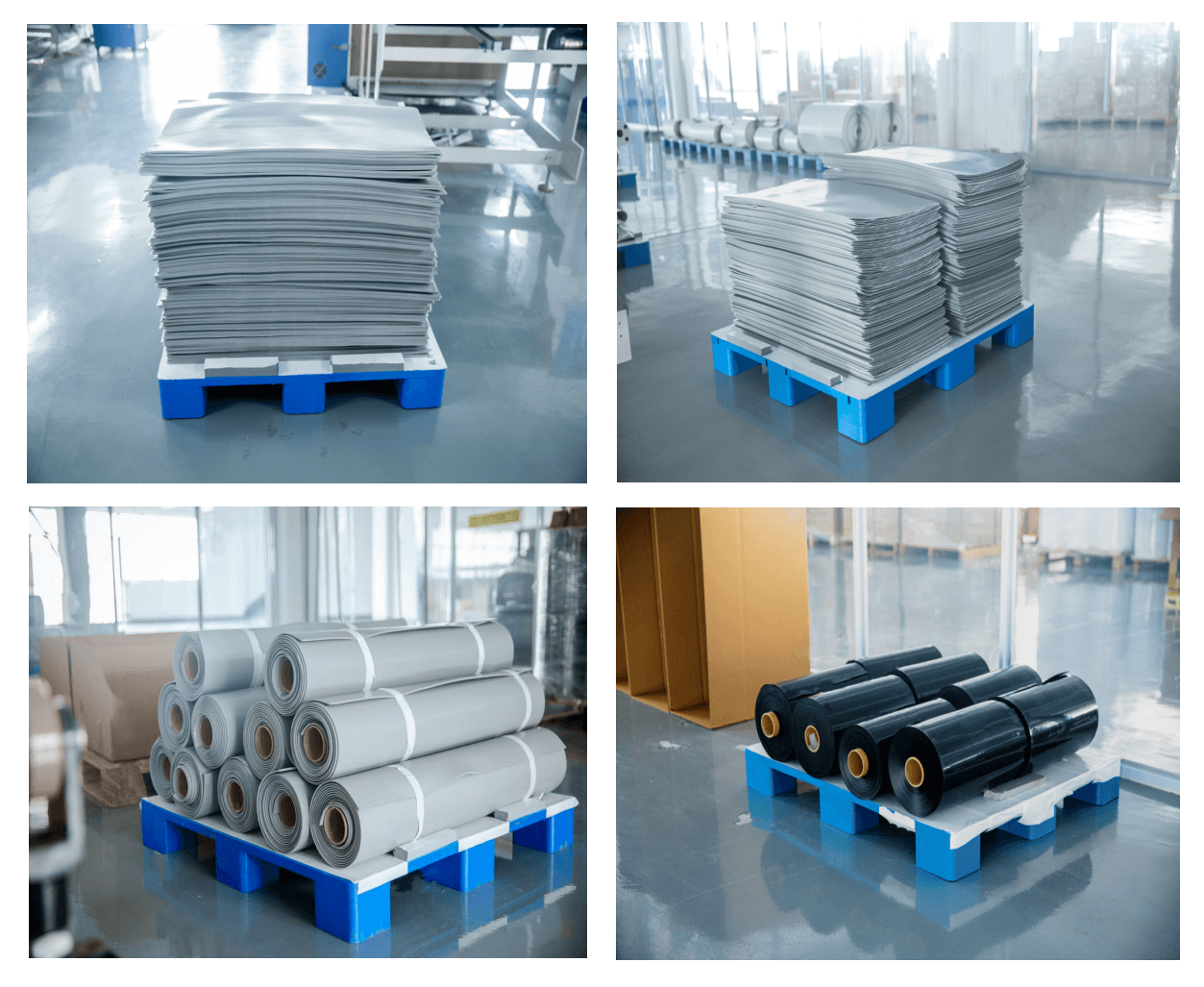

Our KB1020MF silicone foam is carefully packaged to ensure material integrity and protection during transportation and storage. We offer flexible packaging formats depending on the product dimensions and customer requirements.
Packed flat in protective PE film and placed in reinforced cardboard cartons. Standard width: 500 mm or 1000 mm. Thickness: 0.5 mm to 5.0 mm.
Rolled with protective PE film and packed in heavy-duty cartons or fiber drums. Standard width: 500 mm or 1000 mm. Length: up to 50 meters per roll, depending on thickness.
Custom gaskets or pads are bagged and boxed with part number labeling. Bulk or tray packaging available upon request.
Moisture-proof and dust-proof wrapping
Labeling with product code, lot number, and specification details
Export-ready wooden pallets available for large volume shipments
Global shipping available via air, sea, or courier
Lead time: 7–10 working days based on order volume and customization
Express prototyping support available for urgent projects
When you purchase Micro-foamed Silicone Foam Roll KB1020MF, you receive:
High-performance closed-cell silicone foam with excellent sealing, thermal insulation, and flame resistance (UL94 V-0).
Available in sheets, rolls, or precision die-cut parts. Choose your ideal thickness, dimensions, and adhesive backing options.
Outstanding compression recovery, low water absorption, and long-term durability in extreme environments (–60°C to 200°C).
Neatly packed in rolls or cartons, with protective film, labeling, and export-ready pallets upon request.
Free samples available for testing. Our engineers provide fast support for design validation, custom specifications, and application matching.
Proprietary silicone formulation
Certified with UL, RoHS, REACH
Supply experience with Tier 1 EV clients
Fast prototyping and sample support
Global delivery and responsive service
Thickness: 0.5 mm–5.0 mm
Formats: Sheet, roll, or die-cut gasket
Surface: Smooth or fabric-coated
Color: Grey, red, black, or custom
Huawei – Global leader in communications, smart devices, and energy solutions
ZENERGY – Trusted supplier specializing in new energy battery systems
SAIC Motor – One of China’s largest and most innovative automotive manufacturers
Dongfeng Motor – Leading state-owned company in commercial and passenger vehicles
CRRC – World’s largest manufacturer of rail transit equipment and systems
CALB – Global innovator in lithium battery technology and energy storage solutions
Their trust speaks for our quality, reliability, and engineering excellence.
Choose KOMPA—where material innovation meets engineering precision.
Closed-cell silicone foam is used in a wide range of industries for sealing, insulation, cushioning, and flame protection. Its closed-cell structure prevents the passage of air, water, and dust, making it ideal for environmental sealing in harsh conditions. Common applications include:

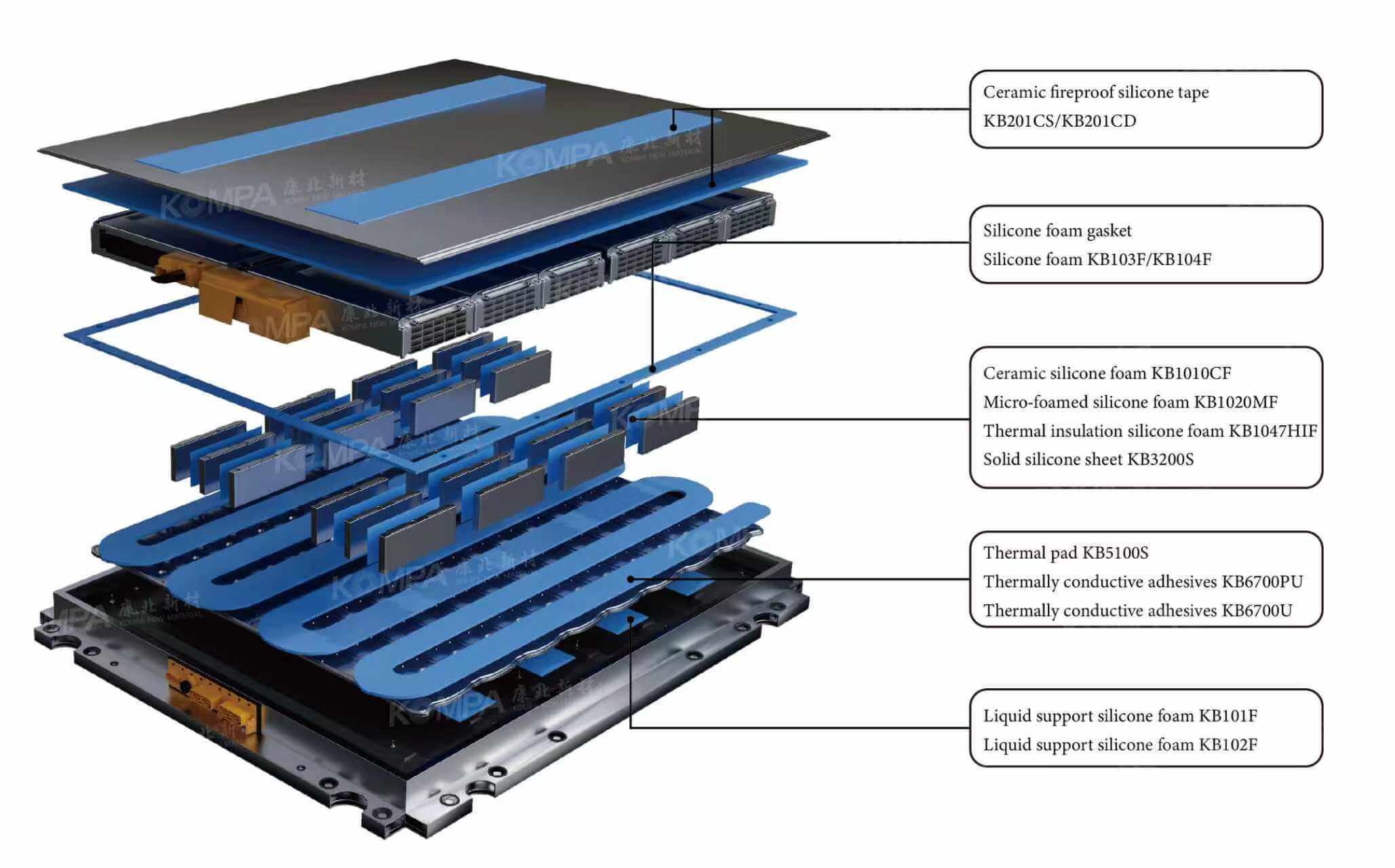

EV battery pack protection and sealing
Thermal insulation and fire protection in energy storage cabinets
Gasketing in automotive and aerospace systems
Shock and vibration dampening in electronic devices
Weatherproof seals for outdoor equipment and enclosures
Because of its excellent temperature resistance, low compression set, and flame-retardant performance (UL94 V-0), it is trusted in critical and high-safety applications.
Features a compact structure where cells are completely enclosed, preventing air, water, and dust from passing through. This makes it ideal for sealing, insulation, and environmental protection in harsh conditions. It offers better water resistance and lower air permeability, commonly used in EV batteries, outdoor enclosures, and gaskets.
Has interconnected cells that allow air and moisture to flow through. It is softer, more compressible, and better for cushioning, sound absorption, and applications requiring ventilation or breathability.
Closed-cell: Better sealing and protection
Open-cell: Better breathability and cushioning
Choosing the right type depends on your application’s needs for moisture control, airflow, and mechanical performance.
Yes, please download here
We support a wide range of custom shapes, sizes, thicknesses, and adhesive backing options, using precision die-cutting, CNC cutting, or waterjet processes. Whether you need gaskets, pads, thermal barriers, or sealing strips, we can produce components based on your CAD drawings or technical specifications. Custom services include:
Tolerance-controlled cutting
Multi-layer lamination
PSA (Pressure Sensitive Adhesive) backing
Rapid prototyping and small batch support
Our team works closely with engineers and project managers across EV, automotive, energy, and electronics industries to deliver reliable, application-specific solutions.
Thickness Requirements: Available in thicknesses from 0.5 mm to 5.0 mm. Choose based on gap size, compression level, and sealing performance needed.
Thermal and Flame Resistance: Ideal for high temperatures (up to 200°C) or fire safety standards like UL94 V-0 due to stable performance under extreme conditions.
Compression Set and Recovery: Offers excellent recovery and low compression set for long-term sealing under pressure.
Environmental Exposure: Resistant to UV, ozone, and moisture, making it suitable for outdoor or rugged environments like EV battery packs and energy storage units.
Custom Processing: Supports die-cut gaskets, adhesive backing, or laminated layers for better fit and functionality in complex assemblies.
Certifications and Compliance: Meets regulatory needs such as RoHS, REACH, and automotive flame-retardant standards.
If you’re unsure, our technical team can recommend the ideal density, thickness, and design configuration based on your product and industry needs.
Comparable performance in thermal stability, flame retardancy (UL94 V-0), and compression set
Better flexibility on thickness, width, and custom formats
Faster lead times and local technical support from KOMPA’s expert team
More competitive pricing without compromising quality
Trusted by leading EV, battery, and energy storage brands
