KB4100H
KOMPA
Silicon dioxide, opacifier, ceramic fiber, etc.
0.8mm-4mm
7-14 days
260-450 (g/cm³)
500mm, 1000mm
China
ISO9001, ISO14001, ISO45001, IATF16949, EN45545-2, UL94-V0, NSF61, UL157-2007 Gaskets and Seals. CE, ROHS, PAHS, REACH
Product Description

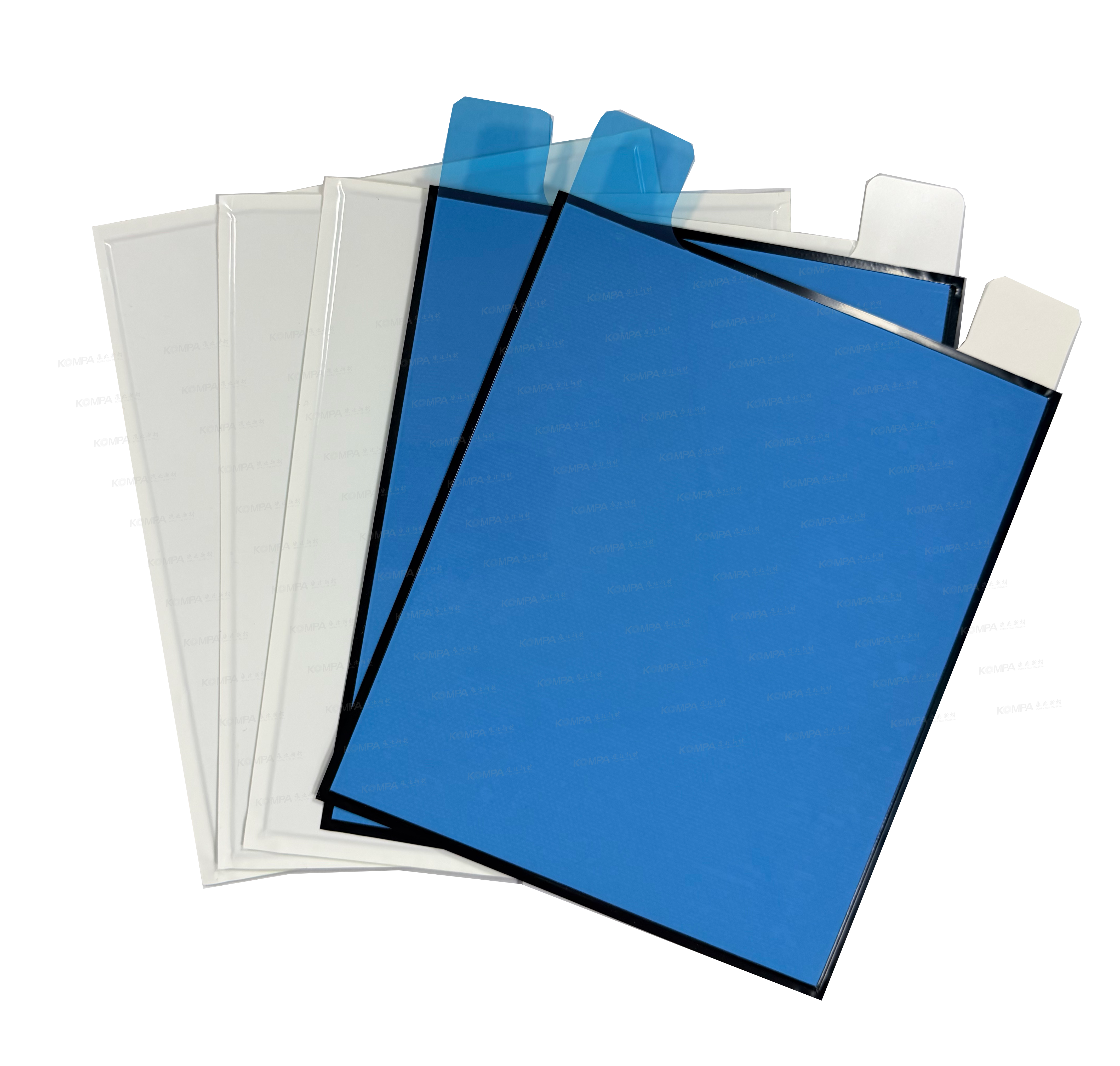

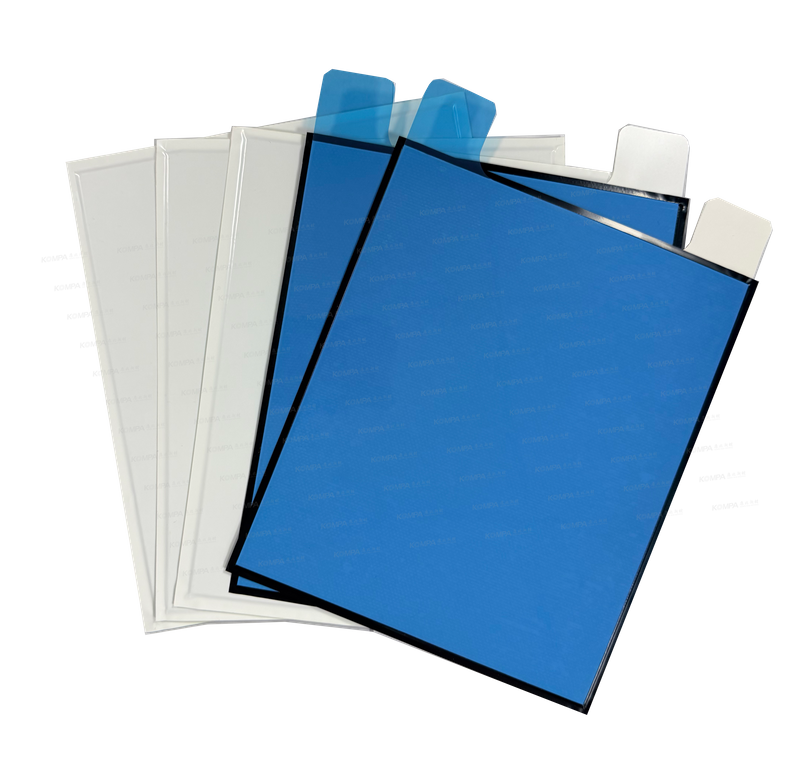

Nano Insulation Boards are high-performance thermal insulation materials designed for EV battery packs, energy storage systems (ESS), and high-voltage electronic applications. Engineered with nano microporous technology, these insulation boards provide exceptional thermal resistance, flame retardancy, and thermal runaway protection in compact battery structures.
As EV and ESS systems continue moving toward higher energy density, battery safety and thermal management have become critical design priorities. Nano microporous insulation materials are increasingly adopted in battery pack passive fire protection because they can effectively delay heat transfer and suppress thermal propagation in limited installation spaces.
Thermal conductivity as low as 0.018–0.030 W/m·K, effectively blocking heat transfer between battery cells.
Available from 1mm to 10mm thickness, helping reduce battery pack size and weight while maintaining safety performance.
High temperature resistance up to 1000°C (grade dependent)
Non-combustible structure
Effective thermal runaway delay function
High dielectric strength helps prevent electrical short circuits between adjacent cells.
Good compression resistance
Stable structure under vibration and long-term pressure
Suitable for tight battery module assembly
Resistant to electrolyte exposure, humidity, and long-term thermal aging.
In lithium battery packs, thermal runaway propagation between cells is one of the most critical safety risks.
Nano insulation panel is designed to act as a cell-to-cell thermal barrier, providing:
Heat isolation between adjacent cells
Delay of thermal propagation chain reaction
Improved battery pack safety performance
Reduced risk of system-level failure
Better compliance with EV safety standards
It is especially suitable for high-energy density battery systems, where spacing is minimal but safety requirements are extremely high.
KB4100H Series—Nano Insulation Boards.pdf
| Testing items | Testing method | Typical Values for the Nano-Insulation Board Series |
|---|---|---|
| Color | Visually | Gray plate-shaped material |
| Thickness (mm) | Thickness gauge | 0.8~4.0 |
| Density (kg/cm³) | GB/T 533-2008 | 260~450 |
| Compressive strength MPa | ASTM D412 | Compress by 10% ≥ 0.2 |
| Compress by 20% ≥ 0.5 | ||
| Compress by 30% ≥ 1.3 | ||
| Flame retardancy | UL94-2013 | UL94 V-0 |
| Insulation resistance MΩ | GB/T 1410 (DC 1000V) | ≥500 |
| Water absorption rate % | ASTM D 570 （85% RH, 1000 h) | ≤5 |
| Specific heat capacity J/(g・℃) | ASTM E1269-2011 | ≥0.3 |
| Thermal conductivity W/(m·K) | ASTM C 518 | 20℃ ≤0.020 |
| 100℃ ≤0.025 | ||
| 500℃ ≤0.030 | ||
| 800℃ ≤0.040 | ||
| Thermal insulation performance | / | ≥500℃ (@675℃/2mm) |
| Temperature resistance limit | Flame Impact | Under direct impact from a high-temperature flame at 1200℃, No burn-through; integrity remains well-preserved. |
| Environmental testing REACH/ROHS/ELV | Compliant | |
Nano Thermal Insulation Panel is widely used in energy storage and electric mobility industries:
Cell spacer insulation
Module thermal barrier layer
Pack-level fire protection material
Rack insulation panels
Cabinet thermal isolation
Fire protection barrier layer
Prismatic cell insulation
Cylindrical cell spacing
Pouch cell thermal protection
UPS battery systems
Backup power modules
High-voltage energy storage units
Nano Thermal Insulation Panel can be easily processed into different shapes and structures:
Die-cut cell spacer shapes
CNC cutting for precision modules
Lamination with adhesive tape
Composite with aluminum or polymer films
Customized gasket or frame structures
It is fully compatible with automated battery pack assembly lines.
Our Silicone Foam Sheet KB101F is carefully packaged to ensure material integrity and protection during transportation and storage. We offer flexible packaging formats depending on the product dimensions and customer requirements.
Packed flat in protective PE film and placed in reinforced cardboard cartons.
Standard width: 500mm or 1000mm
Thickness: 1mm to 30mm
Rolled with protective PE film and packed in heavy-duty cartons or fiber drums.
Standard width: 500mm or 1000mm
Length: up to 50 meters per roll, depending on thickness
Custom gaskets or pads are bagged and boxed with part number labeling. Bulk or tray packaging available upon request.
Moisture-proof and dust-proof wrapping
Labeling with product code, lot number, and specification details
Export-ready wooden pallets available for large volume shipments
Global shipping available via air, sea, or courier
Lead time: 7–10 working days based on order volume and customization
Express prototyping support available for urgent projects
When you purchase Silicone Foam Sheet KB101F, you receive:
High-performance closed cell silicone foam with excellent sealing, thermal insulation, and flame resistance (UL 94 V-0).
Available in sheets, rolls, or precision die-cut parts. Choose your ideal thickness, dimensions, and adhesive backing options.
Outstanding compression recovery, low water absorption, and long-term durability in extreme environments (–60°C to +200°C).
Neatly packed in rolls or cartons, with protective film, labeling, and export-ready pallets upon request.
Free samples available for testing. Our engineers provide fast support for design validation, custom specifications, and application matching.
KOMPSI focuses on advanced thermal management materials for EV and energy storage applications.
Our advantages:
Stable mass production capability
Strong customization support for battery OEMs
Consistent thermal performance control
Experience in EV and ESS insulation materials
Fast sample development and engineering support
We work closely with battery manufacturers to optimize thermal safety + energy density balance.
Our Key Partners Include
Huawei – Global leader in communications, smart devices, and energy solutions
ZENERGY – Trusted supplier specializing in new energy battery systems
SAIC Motor – One of China’s largest and most innovative automotive manufacturers
Dongfeng Motor – Leading state-owned company in commercial and passenger vehicles
CRRC – World’s largest manufacturer of rail transit equipment and systems
CALB – Global innovator in lithium battery technology and energy storage solutions
Their trust speaks for our quality, reliability, and engineering excellence.
Choose KOMPA—where material innovation meets engineering precision.
It is used as a thermal barrier and spacer between lithium battery cells to prevent heat transfer and improve safety.
Yes, in high-performance battery systems, it provides significantly better thermal insulation and fire resistance.
It can be designed as semi-rigid or flexible depending on reinforcement structure.
Yes, it is suitable for precision die-cutting into battery cell shapes.
Typically matches battery life cycle (8–15 years under operating conditions).
We support a wide range of custom shapes, sizes, thicknesses, and adhesive backing options, using precision die-cutting, CNC cutting, or waterjet processes. Whether you need gaskets, pads, thermal barriers, or sealing strips, we can produce components based on your CAD drawings or technical specifications.
Custom services include:
Tolerance-controlled cutting
Multi-layer lamination
PSA (Pressure Sensitive Adhesive) backing
Rapid prototyping and small batch support
Our team works closely with engineers and project managers across EV, automotive, energy, and electronics industries to deliver reliable, application-specific solutions.
KB101F is available in a range of thicknesses (typically 1mm–20mm). Choose the right thickness based on the gap size, compression level, and sealing performance required.
If your application involves high temperatures (up to 200°C) or fire safety standards like UL 94 V-0, KB101F is an excellent choice due to its stable performance under extreme conditions.
Evaluate the compression set performance for applications requiring long-term sealing under pressure. KB101F offers excellent recovery and low compression set.
KB101F is resistant to UV, ozone, and moisture, making it ideal for outdoor or rugged environments like EV battery packs and energy storage units.
Determine if you need die-cut gaskets, adhesive backing, or laminated layers. KB101F supports customization for better fit and functionality in complex assemblies.
Ensure Silicone Foam Sheet KB101F meets your regulatory needs, such as RoHS, REACH, or automotive flame retardant standards.
If you're unsure, our technical team can help recommend the ideal density, thickness, and design configuration based on your product and industry needs.
Comparable performance in thermal stability, flame retardancy (UL 94 V-0), and compression set
Better flexibility on thickness, width, and custom formats
Faster lead times and local technical support from KOMPA's expert team
More competitive pricing without compromising quality
Trusted by leading EV, battery, and energy storage brandsa.
